Floor slab and pipe sleeve details in AutoCAD, Dwg files.

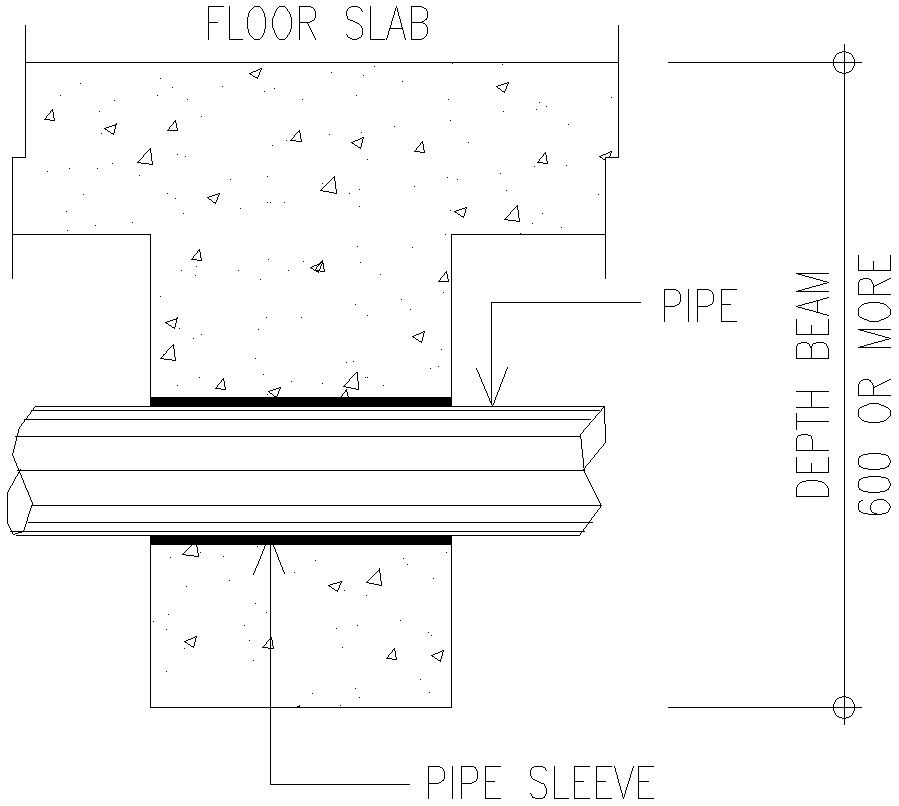

This Architectural Drawing is AutoCAD 2d drawing of Floor  slab and pipe sleeve details in AutoCAD, Dwg files.  Sleeves are commonly used in concrete floors. Sometimes the sleeve is a form to create an opening for a penetrating item. Other times, the sleeve may project beyond the top surface of the floor to help deflect or prevent entry of water. For more details and information download the drawing file.
